Calvin Bahlmann’s Power Wheel
Amended version of a presentation given at exotic research conference in Mesa Arizona
Wimhurst * Thesta-Distatica *电源轮
This paper discusses the development of energy producing rotating disc machines. Wimhurst influence machines, the swiss machine thesta-distatica (td) and the bahlmann power wheel (pw) are energy producing machines. The principle of operation for the two latter machines is not well known.
INTRODUCTION
Inexpensive or free energy (not really free) is the dream of all who pay utility bills. Three-fourths of the world does not even have electricity so those who have no electrical energy at all will welcome the power wheel, a hybrid version of the thesta-distatica. Can rotating discs with water based capture capacitors (c-caps) be used to make this dream come true?
替代能源研究人员在国际高technology and nu energy horizons have developed energy producing devices and machines for mankind which will change the way people energize appliances and other devices that require electrical power.
Two major classes of energy producing machines are needed, one for solid state or non-inductive loads and one for inductive loads. Lighting requires a less expensive power unit than one for inductive loads such as motors, however most use will come from units designed to adjust to all loads.
Wimhurst machines are used mostly for demonstration and scientific research and are not suited for providing the energy needs of a home or business.
目前的研究人员试图重建尤特图 - Distatica已经走了很长时间，复杂，没有答案的不良途径。这些问题仍然存在，“Thesta-Distatica如何为其大小产生如此多的能量？高电压如何走下去？“
电源轮和其他固态能源生产装置现在是国际高科技实验室的现实。这些有效的机器将成为世界上最宏伟的机器。制造过程的预生产阶段接近完成。
Whimhurst影响机器
设计特点
以下对WiMhurst机的描述是基本的。有关详细说明，请参阅R.A的“自制闪电”。福特是麦格劳山出版有限公司的出版物。并获得Lindsay书籍。

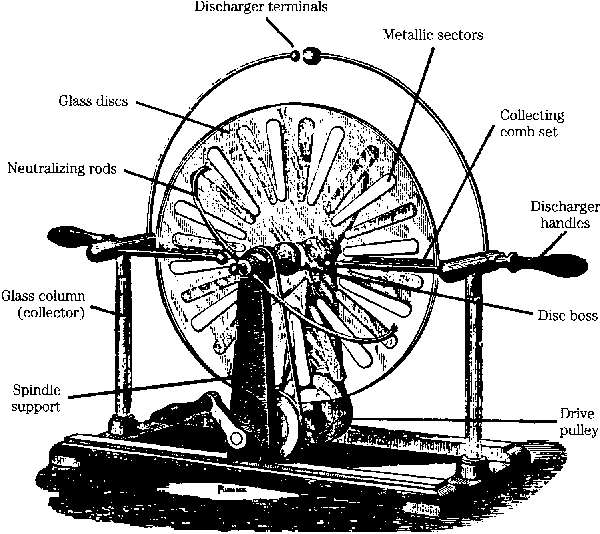

The wimhurst machine uses counter-rotating discs that rotate at between 2,000 and 3,000 rpm for best output. Small to medium size wimhurst machine output can be from 10kv to 75kv and higher. Machine construction, weather conditions, diameter of each disc and speed of rotation determine output. The original wimhurst machines were turned by hand. Four pulleys and two belts connected to a common crank shaft made the discs rotate. Both belts were on the common crank shaft but, one belt was twisted 180 degrees so it would turn one disc in the opposite direction of the other. The electrical charge from the discs was collected by combs and stored in accumulators (leyden jars, capacitors). The wimhurst machine had little use except for scientific research and electro-theraputic medical applications. Fig. 1 shows a basic wimhurst machine.
Thesta-Distatica（TD）奇迹机器
设计特点
瑞士Thesta-Distatica是由Paul Baumann建造的改进的WiMhurst设备或由Paul Baumann在瑞士菩提树的精神社区Mertherna的冷凝器。在他成为Merthernitha社区的居民之前，发明者Paul Baumann是一位熟练的钟表制造商和钟表制作人。Paul Baumann在他入狱时建造了第一个带有原始材料的TD。
要了解Wonder机器的操作原理，我们必须使用*视频作为参考并评估所提出的内容。梅雷尼塞纳社区的人们对他们的发明秘密，显然没有向观众透露所有人。
视频叙述者发表了一个有趣的陈述。“一盘代表云层，另一个盘代表了地球。”简单来说，它意味着天线和地面。该视频在大型绝缘体上展示了一根电线，其表示云或天线。没有显示地面线，但可能通过机器的基础，无法看到
In a picture. Many views of the td were shown and mention was made of a device called, “antenna keys”. The antenna keys was simply a means of impressing the electrostatic energy from the air onto the rotating disc. This would enhance the total output of the td. The principle is similar to tesla’s radiant energy collector, but with rotating discs that also produces energy from counter rotation.
KEY POINTS TO CONSIDER WHEN STUDYING THE WONDER MACHINE THESTA DISTATICA:
- merthernitha was a spiritual community and did not have viewpoints common to most outsiders. To “thoroughly understand” the wonder machine and the people who designed it we must have the same beliefs lifestyle and values as they did or we must understand their way of living.
Remember the author used the words, “thoroughly understand.” many people do understand some things about the wonder machine but they do not understand everything nor does the author claim to. - Paul Baumann was not educated in the schools of modern science chemistry, physics, electronics and math. Paul baumann studied nature, heaven and earth and had a deep faith in a creator god who he believed could give supernatural wisdom to chosen ones. He claimed to have had visitations from supernatural entities (angels?). Paul baumann was a skilled clockmaker and watchmaker. As most people know a timepiece (watch or clock) requires perfect speed regulation for accurate time whether it be electrical, electronic or mechanical. The swiss frequency standard for electrical devices is 50 cycles and it has been stated that the td rotated at 50 rpm.

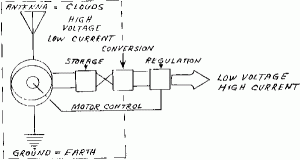

- Much has been written about thesta-distatica and one can be easily confused, but if you pay attention the facts can be sorted out. A block diagram of the td and associated equipment is shown in fig. 2
POWERWHEEL
设计特点
The power wheel demonstrated at exotic research conference mesa, az. In late july 1998 was not a wimhurst type machine. The power wheel electrical system was based on a 3 volt input to drive the small motor and the dual high voltage modules. Eight liquid capture capacitors (c-caps) were used as a part of the input energy. To efficiently energize the power wheel a bank of 50 capture capacitors connected in series parallel are needed for an output of 10.5 vdc open circuit voltage. When the drive motor and the high voltage modules are connected the voltage drops to approximately 2.8 vdc. Current needed to drive the complete electrical system at full load 15 300-500 milliamps. The high voltage module output is 360 to 380 vdc. These modules can light (2) 15 watt 110 volt lamps in series at full brightness with a pulsating output every 15 seconds… The power wheel demonstration also included lighting a 270 volt 175 watt street lamp momentarily every 20 seconds.
Capture capacitors invented by bruce perreault use a unique method of self recharging. The original c-caps were based on radioactive emanations. Liquid c-caps developed by international high technology used in the power wheel demonstration are water based and used a formula with numerous elements in various proportions. Each c-cap used 4 oz. Of distilled water (store brand) to the water was added 1/2 teaspoon (2.5 ml) of dry mix which included a fritted semiconductor material and about 12 other proprietary materials. The c-caps take 1 week to stabilize and produce full power. Each c-cap has an output of 1.2 to 1.4 vdc continually. The output does drop under full load, but when the load is removed the c-caps go back to their original no load output…
